Retaking images

You can retake the image in an exam with a single image, or you can retake one or more of the images in an exam with a series of images.

To retake images

1. If the correct patient is not already selected, use the Patient Search box to access the patient's record.

   Note: You can include inactive patients in the search results by setting the Include inactive patients switch to On.

2. On the Patient menu, under Clinical, click (or tap) Chart, Progress Notes, Quick Exam, Perio, Tx Planner, or Imaging. Then, on the Imaging tab's menu, click (or tap) Show Image History.



   The patient's imaging page opens to the history view, and the most recent exam is selected by default on the Images tab.



3. Do one of the following:

   Retake the image in an exam with a single image:

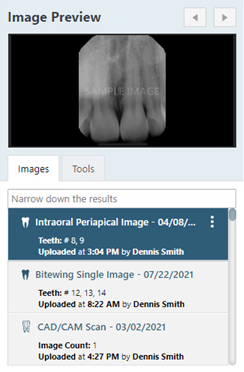

   1. Select an exam with a single image.

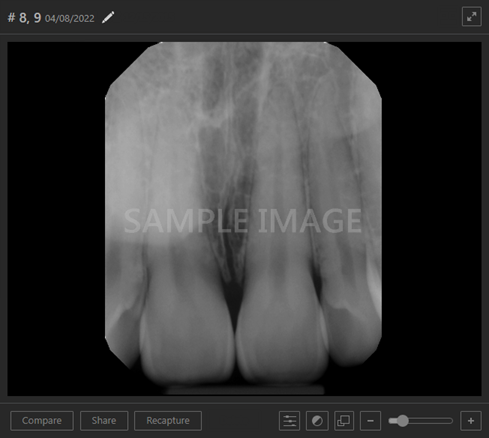

      The image appears in the viewing area.



   2. Either click (or tap) the Recapture button, or select the Recapture option on the More menu.

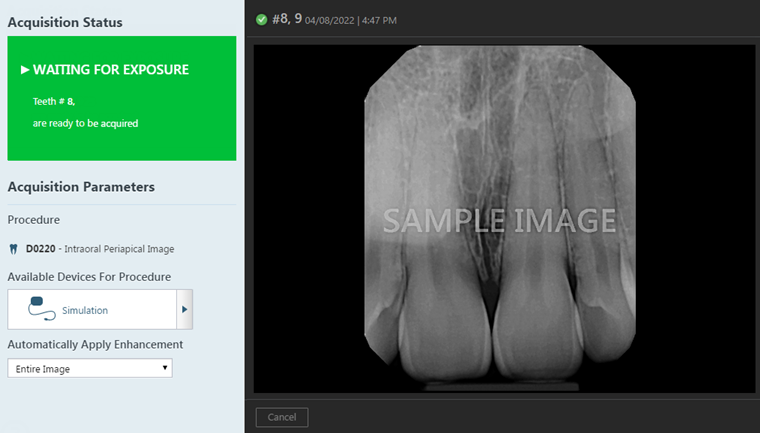

   3. When the X-ray sensor becomes ready for exposure, acquire the image.

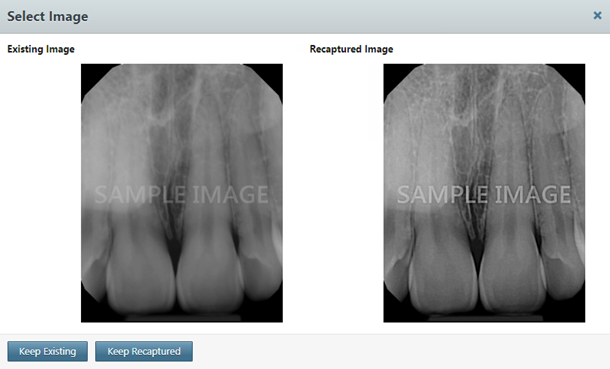

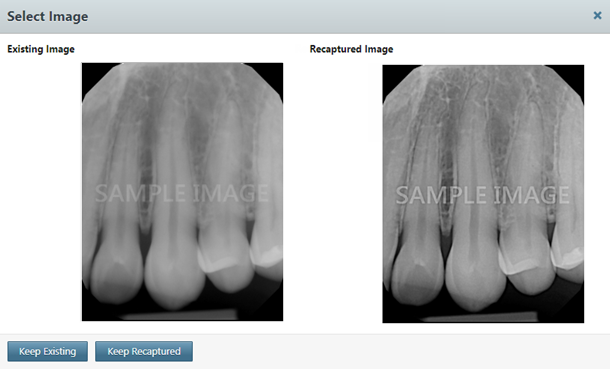

      The Select Image dialog box appears.



   4. Click (or tap) either Keep Existing to keep the original image or Keep Recaptured to replace the original image with the new one.

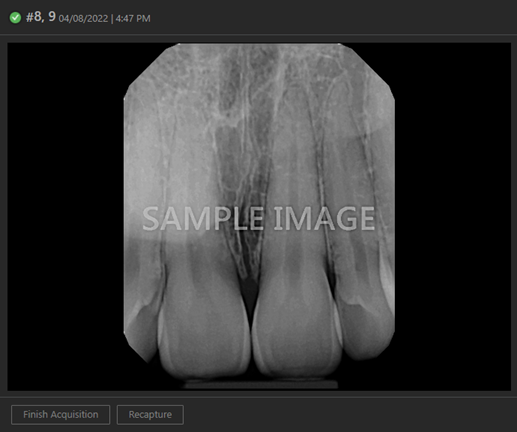

      The original or recaptured image appears in the viewing area.



   5. To retake the image again, click (or tap) Recapture. Then, repeat steps c-d.

   6. Click (or tap) Finish Acquisition.

   7. If the image fails to upload, a message appears and provides the option for you to recover the image. Click (or tap) Recover Images to begin the recovery process.

   Retake one or more images in an exam with a series of images:

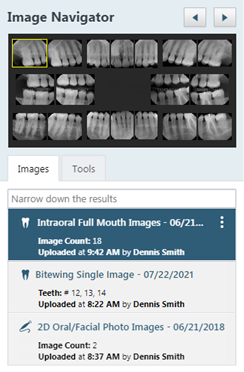

   1. Select an exam with a series of images (such as a full mouth series or bitewings).



   2. Under Image Navigator, click (or tap) the image that you want to retake.



      The selected image appears in the viewing area.



   3. Either click (or tap) the Recapture button, or select the Recapture option on the More menu.

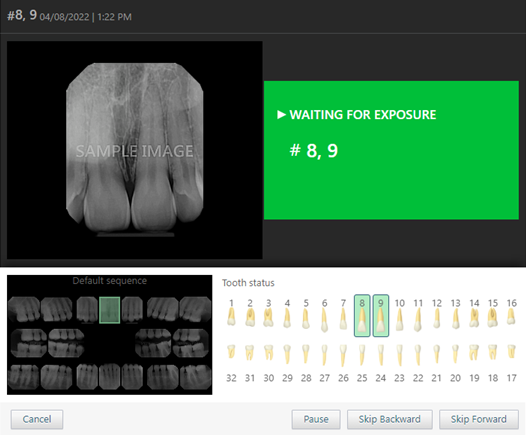

   4. When the X-ray sensor becomes ready for exposure, acquire the image.



      Note: The applicable step in the acquisition sequence for the template is selected automatically.

      The Select Image dialog box appears.



   5. Click (or tap) either Keep Existing to keep the original image or Keep Recaptured to replace the original image with the new one.

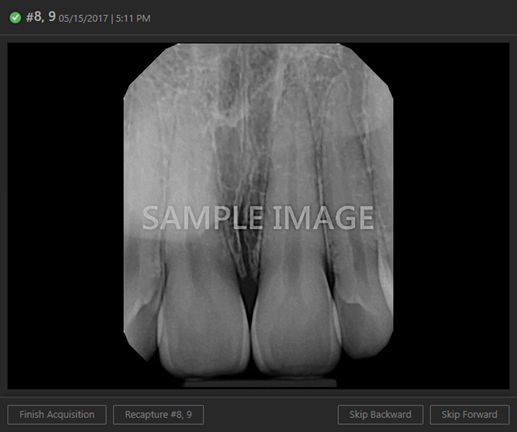

      The original or recaptured image appears in the viewing area.



   6. To retake the image again, click (or tap) Recapture. Then, repeat steps d-e.

   7. To retake other images in the series, do the following:

      1. Click (or tap) Skip Backward or Skip Forward.

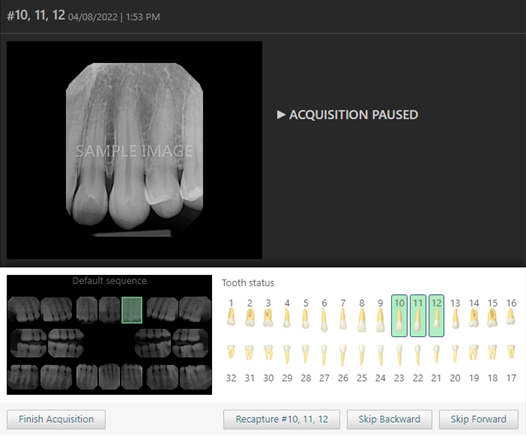

         The options for acquiring images in the series appear, and the acquisition is paused automatically.



      2. Do one of the following:

         • If the correct step in the acquisition sequence for the template is selected, click (or tap) Recapture.

         • Click (or tap) the correct step in the acquisition sequence for the template.

         • Click (or tap) Skip Backward or Skip Forward as needed to navigate to the correct step in the acquisition sequence for the template, and then click (or tap) Recapture.

      3. When the X-ray sensor becomes ready for exposure, acquire the image.

         The Select Image dialog box appears.



      4. Click (or tap) either Keep Existing to keep the original image or Keep Recaptured to replace the original image with the new one.

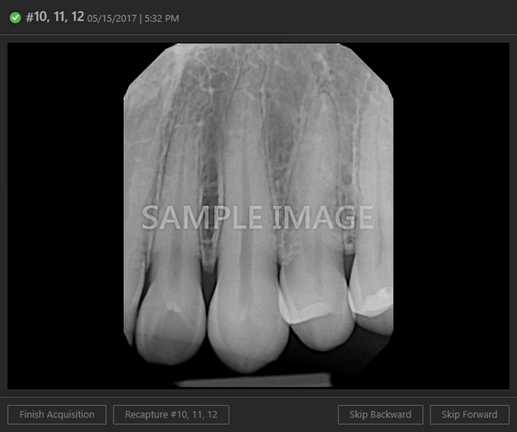

         The original or recaptured image appears in the viewing area.



      5. To retake the image again, click (or tap) Recapture. Then, repeat steps i-iv.

      6. Repeat steps i-v as needed to retake other images in the series.

   8. Click (or tap) Finish Acquisition.

      Notes:

      • If the acquisition is paused (manually or automatically) on a step with an image, the Pause button changes to the Recapture button.

      • If the acquisition device is ready to acquire an image, if the images for all steps have been captured, or if the acquisition is paused, the Cancel button changes to the Finish Acquisition button.

   9. If any images fail to upload, a message appears and provides the option for you to recover the images. Click (or tap) Recover Images to begin the recovery process.
