You can view images for selected teeth from a patient's clinical chart and progress notes.
To view images for selected teeth
If the correct patient is not already selected, use the Patient Search box to access the patient's record.
Note: You can include inactive patients in the search results by setting the Include inactive patients switch to On.
On the Patient menu, under Clinical, click (or tap) Chart.
The patient's clinical record opens with the Chart tab selected.
Do one of the following:

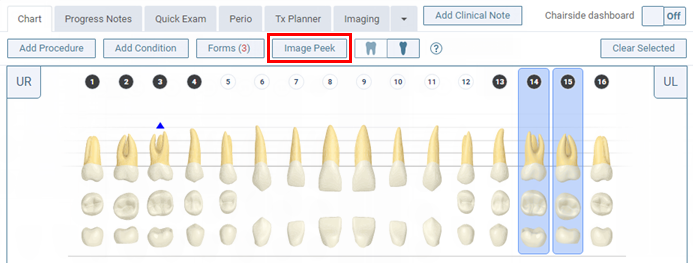

Select one or more teeth with associated images, and then click (or tap) Image Peek. The button is available only if at least one tooth with an image is selected.

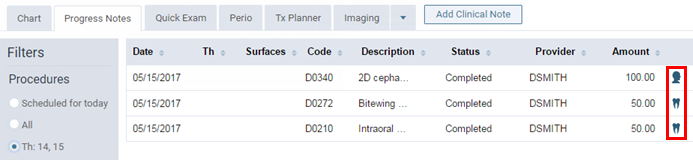

Select one or more teeth with associated images, and then click (or tap) the Progress Notes tab. On the Progress Notes tab, click (or tap) the imaging icon next to a procedure.

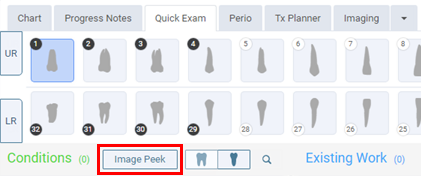

Select one or more teeth with associated images, and then click (or tap) the Quick Exam tab. On the Quick Exam tab, click (or tap) Image Peek (the button appears as a white tooth on a blue background if there is not enough room to display the button with a text label). The button is available only if at least one tooth with an image is selected.
The Image Peek dialog box appears.
If there are multiple images, use the Back and Forward buttons to navigate between the images.
To edit the image that is currently being viewed, click (or tap) the Open for Editing button .
Note: The saved state of the Smaller/Larger button , which is available when you are viewing images, affects the size of images in the Image Peek dialog box. The state of the button is stored per computer (or device).
Click (or tap) Done.
