You can enter a perio exam in a patient's record.
To enter a perio exam
How to get there
If the correct patient is not already selected, use the Patient Search box to access the patient's record.
Note: You can include inactive patients in the search results by setting the Include inactive patients switch to On.
On the Patient menu, under Clinical, click (or tap) Perio.
The patient's clinical record opens with the Perio tab selected.
On the Perio tab of a patient's clinical record, click (or tap) New Perio Exam.

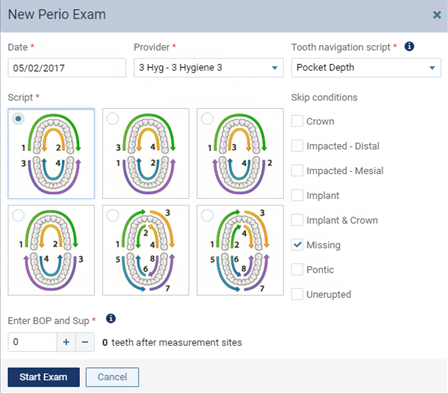

The New Perio Exam dialog box appears.
Select the desired options, such as the arch and tooth sequence and the teeth to be skipped.
Date - Verify that the date is correct. If necessary, you can change it.
Provider - Verify that the correct provider is associated with the exam. If necessary, select a different provider. Only providers who have access to the current location are available.
Tooth navigation script - Select whether you want enter primarily pocket depths, primarily gingival margins, or the pocket depth and then the gingival margin at each measurement site. A selection frame will appear next to the applicable measure (PD or GM) during the exam by default, but you can toggle between pocket depth and gingival margin as needed.
Tip: If you are not using the script that allows you to enter pocket depths and gingival margins at each measurement site, to enter pocket depths first and then gingival margins, select Pocket Depth as the script, start the exam, enter pocket depths, save the exam, restart (or edit) the exam, select Gingival Margin as the script, enter gingival margins, and then save the exam. Or, you can enter gingival margins first and then pocket depths by making the script selections in the opposite order than just explained.
Script - Select the method that you will use to move around the patient's mouth to take perio measurements.
Skip conditions - Specify if any teeth will not get examined. Teeth with any of the selected conditions will be skipped automatically. A tooth is considered to have one of those conditions if an applicable charting symbol is associated with an existing or a completed procedure that was posted for that tooth. However, if Missing is selected, but Implant or Implant & Crown is not selected, a tooth that was replaced with an implant or with an implant and a crown will not be skipped.
Enter Bld and Sup [#] teeth after measurement sites - Enter the number of teeth that you must measure before you can start entering bleeding and suppuration (for example, if you enter four, you must enter measurements for Distal, Center, and Mesial on the Facial side of teeth 1-4) unless you click (or tap) a different area of the exam than where the script starts. Zero indicates that you can start entering bleeding and suppuration immediately upon starting the exam. Also, as you follow the script to continue charting, the selection frame for BOP and Sup trails behind the current position by the specified number of teeth (as with our example of four, if the current position is tooth 10, the selection frame for BOP and Sup is on tooth 6).
Click (or tap) Start Exam.

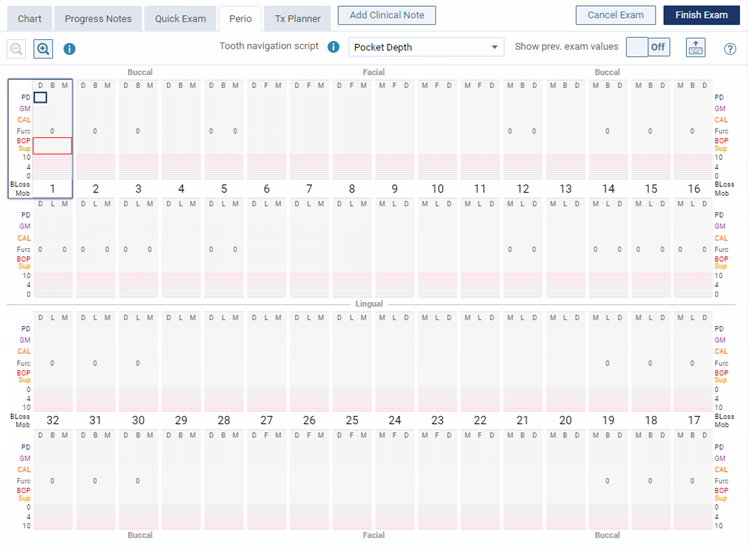

The options for entering a perio exam become available.
By default, if the patient has a previous perio exam entered, the measurements (pocket depth, gingival margin, clinical attachment level, furcation grade, bone loss, and mobility) from that exam appear in gray. To switch between showing and hiding the previous exam's measurements, turn the Show prev. exam values switch On and Off.

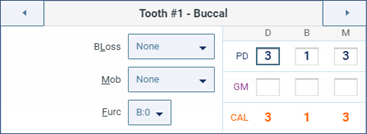

For each tooth, enter the probing depth and then the gingival margin (if applicable for the tooth navigation script being used) at each site. As you type the probing depth and then the gingival margin (if applicable for the tooth navigation script being used), the exam advances to each site and tooth automatically. You can also enter other periodontal measurements, such as bleeding and suppuration.
PD - If you are using the tooth navigation script for entering pocket depths or the one for entering pocket depths and gingival margins, type the probing depths (0 to 19). If you are using the tooth navigation script for entering gingival margins, enter pocket depths in the M, B (or F or L), and/or D boxes.
Note: For measurements that are four or greater, a red box appears around the number on the chart.
GM - If you are using the tooth navigation script for entering gingival margins, type the gingival margins (-19 to 19). If you are using the tooth navigation script for entering pocket depths and gingival margins, type the gingival margin after typing the pocket depth at each site. If you are using the tooth navigation script for entering pocket depths, enter gingival margins in the M, B (or F or L), and/or D boxes.
BOP - If bleeding is present for any sites, click (or tap) the M, B (or F or L), and/or D circles. To quickly add bleeding to multiple sites at once, click (or tap) the shortcut button or press the B key. Clicking (or tapping) the shortcut button or pressing the B key changes the applied bleeding and toggles between the bleeding options for that button: the empty circle removes the bleeding from M, B (or F or L), and D, if any; the two half circles adds bleeding to M and D; the filled circle with an A adds bleeding to M, B (or F or L), and D.
SUP - If suppuration is present for any sites, click (or tap) the M, B (or F or L), and/or D circles. To quickly add suppuration to multiple sites at once, click (or tap) the shortcut button or press the S key. Clicking (or tapping) the shortcut button or pressing the S key changes the applied suppuration and toggles between the suppuration options for that button: the empty circle removes the suppuration from M, B (or F or L), and D, if any; the two half circles adds suppuration to M and D; the filled circle with an A adds suppuration to M, B (or F or L), and D.
Furc - Select furcation grades (F0 to F4). Furcation is not applicable to all tooth sites, so some sites do not have this option available.
Bloss - Select amounts of bone loss (None to Severe).
Mob - Select levels of mobility (None to Class III).
For pocket depths, gingival margins, and the other measurements, you can click (or tap) the left and right arrow buttons to rewind and advance the script for the exam. Click (or tap) an area on the graph to go directly to that part of the script for the exam. You can use the left and right arrow keys to move the selection frame for PD or GM left and right between the M, B (or F or L), and D sites. You can use the up and down arrow keys to move the selection frame for PD or GM up and down. With a site selected for PD or GM, to remove the value that you have entered, press the Delete key. After using the keyboard keys to stray from the script, to get back on script, click (or tap) the left or right arrow button.
You can enter bleeding and suppuration separately from the script for the exam. Click (or tap) the left and right arrow buttons to go backward and forward sequentially between areas in the mouth.
To enter bleeding and suppuration for an entire sextant at once, click (or tap) Mark Bleeding and Suppuration. By default, the tab of the sextant that corresponds to the tooth that is currently selected, but you can enter bleeding and suppuration on any tab as needed. In a sextant, you can quickly specify bleeding and suppuration for all sites, for the same site on all teeth on the buccal or lingual sides, or on a tooth by tooth basis. When you are finished entering bleeding and suppuration, click (or tap) Save.

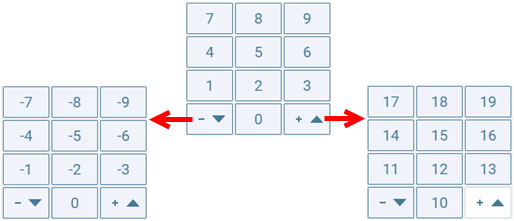

You can use the number buttons or keyboard keys to enter probing depths and gingival margins.
You can zoom in and out at any time during the exam either by holding down the Ctrl key and scrolling or by moving the Zoom slider between Full, Quad, and Tooth. The Full option is available only if the resolution of your computer's (or device's) display is high enough.
To switch between hiding and showing the perio exam controls for entering data, click (or tap) the Hide and Show button .
To switch to a different tooth navigation script, select the desired script from the Tooth navigation script list.
To view an explanation of all the abbreviations and symbols that are used for perio exams and the available keyboard shortcuts, click (or tap) the Legend button .
Note: If you navigate elsewhere in Dentrix Ascend before clicking (or tapping) Finish Exam, a warning message appears. You have until 11:59 PM of the next day to resume the exam; otherwise, it will be deleted.
When you have finished the exam, click (or tap) Finish Exam.
If the patient has a previous exam, the Finish Perio Exam dialog box appears. If not, ignore the next step.
Do one of the following:
To save the current exam with measurements (if they exist) from the previous exam where you have not entered new measurements, click (or tap) Save Exam with the Previous Values.
To save the current exam without any of the measurements from the previous exam, click (or tap) Save Only New Values.
