Recovering images

If an individual image or any images in a set did not get uploaded to the server, you can recover those images from the computer where those images were acquired.

To recover images

1. If the correct patient is not already selected, use the Patient Search box to access the patient's record.

   Note: You can include inactive patients in the search results by setting the Include inactive patients switch to On.

2. On the Patient menu, under Clinical, click (or tap) Chart, Progress Notes, Quick Exam, Perio, Tx Planner, or Imaging. Then, on the Imaging tab's menu, click (or tap) Show Image History.



   The patient's imaging page opens to the history view. The most recent image, series (such as a full mouth series or bitewings), or set of photos (which was acquired using a custom imaging procedure) is selected by default on the Images tab.



3. Select an image or a series (such as a full mouth series or bitewings).

4. On the corresponding options menu, click (or tap) Recover images.



   The options for recovering images appear.

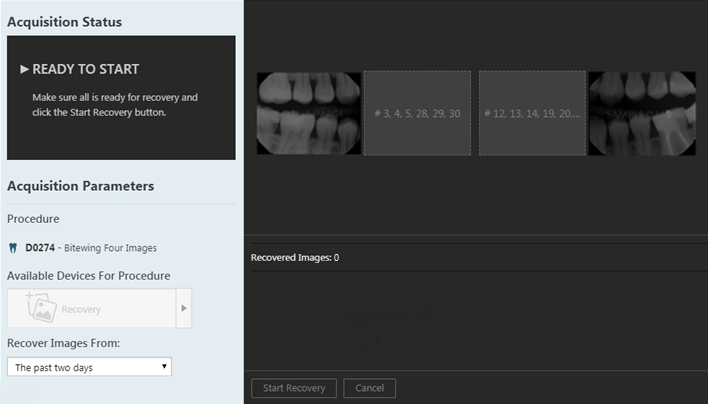

5. In the Recover Images From list, select either The past two days to search for images from the past two days or All time to search for images from any time in the past.

6. Click (or tap) Start Recovery.

   The images that can be recovered appear in the panel at the bottom of the page.

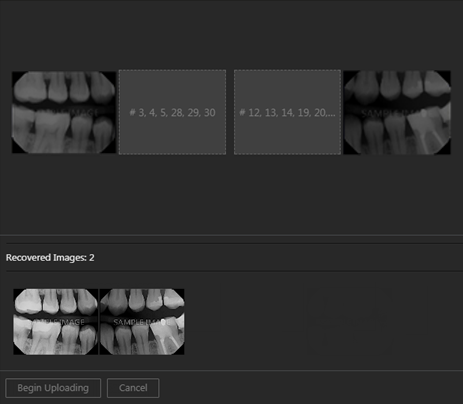

7. One at a time, drag the correct thumbnail images from the panel to the appropriate boxes of the template. For intraoral or extraoral photos, you can select multiple thumbnail images on the panel and then drag them together.

8. Click (or tap) Begin Uploading.
